Linkage for OTB Sling Shot intake

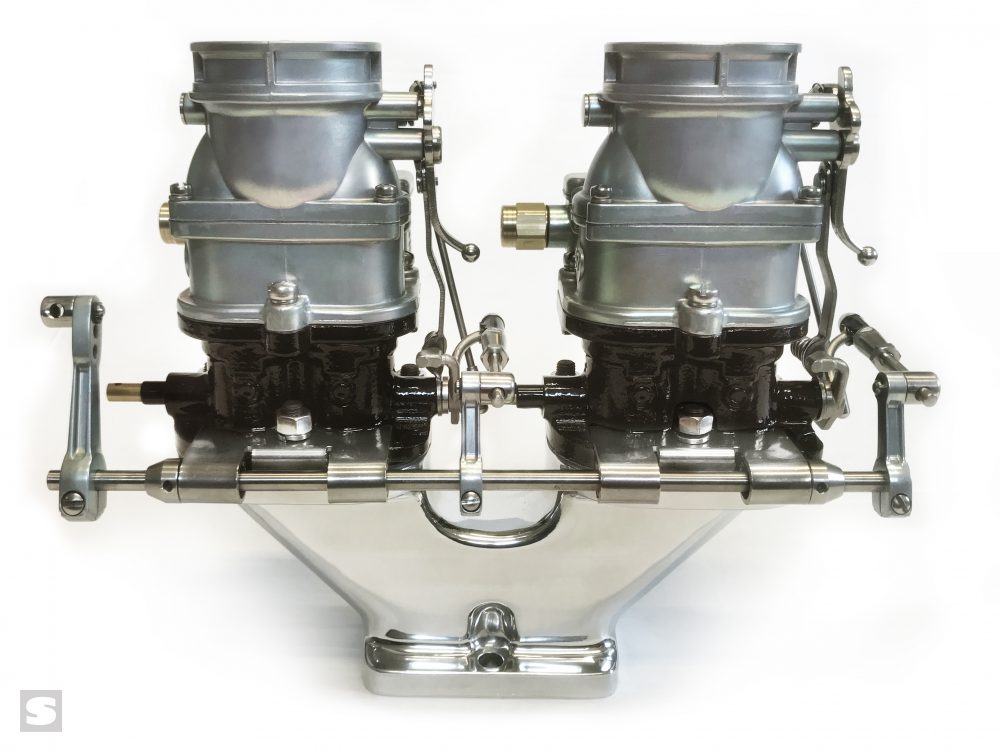

How about this Stromberg linkage for the OTB Sling Shot intake? Or any other crazy 2×2 side-by-side carburetor application come to that – like the Frenzel flathead supercharger. While we do supply special made-to-fit kits for those cool blowers, this is an off-the-shelf kit that will accommodate carburetor spacing of up to 6-11/16in. Kit 9263-D.

These are the highlights.

• Complete 2×2 non-progressive linkage for ‘side-by-side’ carburetor applications
• Unique low-line stainless steel brackets support the back-bar shaft at four points for zero flex and positive operation. Oilite self-lubricating bushes and two small washers to take up any height difference in the base castings.
• Stainless steel back-bar shaft with two end stops to prevent lateral movement.
• Two stainless steel links from the back-bar levers with Stromberg Linkage Bomb clips (9564K-R) for attachment to the carburetors.
• One Stromberg 9096K long lever, which can be positioned anywhere along the back-bar shaft to align with your throttle pedal ‘pull’ point. Complete with swivel and clamping screw.
• Easy to fit. Supplied part-assembled, with instructions…

Want to see the linkage in action? This was an earlier model, but the principle is the same. Twin-plug flathead motor built by Austin Speed Shop and Keith Tardel for our late buddy Doc from Louisiana.

Check it out on the Stromberg website right here …
